Sound & Heat Resistance UPVC Roofing Sheet

Business type: Manufacturer
Brand: YUEHAO
Origin: Foshan, Guangdong, China
Target market: South Americas, Southeast Asia, Mid-east
Grade: AB
MOQ: 300SQM
Supply ability: 1000000SQM
Delivery time: 3 to 10 days
Certificate: ISO 9001:2015
Loading port: Sanshui, Foshan/ Guangzhou/ Shenzhen
Payment terms: T/T, L/C
Packing: Nude packing/ PE bad packing



Overall Width: 930mm/1130mm
Color: White , Bule , Green , Yellow , Red , Dark Green , or Customized
Length: Customize


PRODUCT  DESCRIPTION



PVC has good fire resistance, anticorrosion, weatherability, no asbestos components, bright color, environmental health. It is widely applied to large-span portal structure workshop roofs and walls, which not only meets the anticorrosion requirement of light steel structure workshop, but also saves steel and reduces costs.



PRODUCT  ADVANTAGES


undefinedundefined
undefinedundefined


TECHNICAL  DATA


No. Content Unit Standard Result

1

Appearance quality

-----
Homogeneous color, no bubble, no crack and no visible material  in surface. Clean and no rag
  in telos.
Eligible Eligible
Regular wave shape for two sides’ lapping Eligible
2 Length mm +10 +2 Eligible
3 Width mm +5 +1 Eligible
4 Thickness mm ±0.2 0.06 Eligible
5 Wave height mm ±1.2 +0.04 Eligible
6 Wave space mm ±2.0 0 Eligible
7 Density Kg/m3 1000~1450 1442 Eligible
8 Tensile strength   ≥20 26 Eligible
9 Elongation at break   ≥20 38 Eligible
10 Falling ball impact (1kg,1.5m)   Should be no hole and crack / Eligible
11 Acid resistance(Volume fraction:20% NaOH,24H)   Should be no distinctive color change and no deformation / Eligible
12 Alkali resistance (mass fraction 20% NaOH,24H)   Should be no distinctive color change and no deformation / Eligible
13 Bending   ≤50 12 Eligible
14 Oxygen Index % ≥32 35


SPECIFICATION

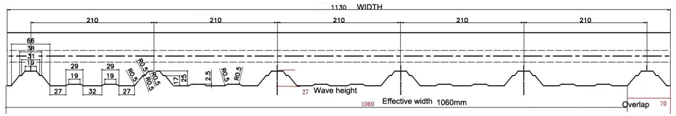

Trapezoidal Type UPVC Roof Sheet






Length Customized
Overall Width 1130/1120/930
Effective Width 1060/810
Thickness 1.5 mm to 3.0mm
Popular Thickness 1.8mm,2.0mm, 2.5mm
wave spacing 210mm
wave height 27mm
Guarantee 10 years life warranty
Weight 2.5mm:4.7±0.1kg/m2,    2.8mm:5.26±0.1kg/m2,3.0mm:5.64±0.1kg/m2

Corrugated Type UPVC Roof Sheet

undefined
undefined

Length Customized
Overall Width 1130/1120/930
Effective Width 1060/810
Thickness 1.0 mm to 3.0mm
Popular Thickness 1.5mm, 2.0mm, 2.5mm
wave spacing 63mm
wave height 16mm
Guarantee 10 years life warranty
Weight 2.5mm:4.7±0.1kg/m2,    2.8mm:5.26±0.1kg/m2,3.0mm:5.64±0.1kg/m2

High Wave Type UPVC Roof Sheet



Length Customized
Overall Width 1070mm
Effective Width 1000mm
Thickness 2.0 mm to 3.0mm
Popular Thickness 2.5mm, 2.8mm, 3.0mm
wave spacing 250mm
wave height 38mm
Guarantee 10 years life warranty
Weight 2.5mm:4.7±0.1kg/m2,    2.8mm:5.26±0.1kg/m2,3.0mm:5.64±0.1kg/m2


INSTALLATION



1.Building roof structure with good quality steel or wooden
2.Set purlins line according requirement of the roof sheet installing standard
3.Cover main roof  piece by piece
4.Gutter /flashing handling
5.Cover side roof
6.Accessories

Normally, at least one corrugation for horizontal overlap, 20-25 cm for lengthwise overlap. In strong wind climate zone, two corrugation for horizontal overlap and more than 25 cm lengthwise overlap is recommended. Roof slope less than 20 degree and 40cm lengthwise overlap is suggested !


OUR SERVICE


1.Best quality and the lowest price can meet your demand.
2.Impeccable after-sales service will solve all worries after you buy our products.
3.24 hours on line to reply you immediately.
4.Every process will be checked by responsible QC which insure the products' quality.
5.Samples could be prepared for you on time
6.Guide you how to install
7.Compensate for the product if some quality problems on our side
8.If you come to our factory, pls inform us in advance,we pick you up if our driver available.
